SCISSOR LIFTS & LIFT TABLES

Nationwide Industrial Supply offers�one of the largest selections of quality�Scissor Lifts and Lift Table equipment .�Quantity Discounts� available. Government and Education PO's Welcome. CALL 1-800-757-1064.

STANDARD SCISSOR LIFTS

FOOT PUMP SCISSOR TABLE

Built tough and engineered for smooth and easy use. Safely handles loads up to 2000 lbs. The 1000 and 2000 lb. tables have two speed pumps for increased convenience (except SCTAB-400). Optional AC/DC operation. FOB Shipping Point.

HYDRAULIC ELEVATING CART

A super rugged mobile hydraulic cart for industrial use. Manually operated foot pedal pump. Durable, precisely engineered hydraulic cylinders. Easy mobility on four 5" x 2" polyurethane on steel (2 rigid, 2 swivel) casters. Standard with a Chrome Plated Platform except HCART-2000. Models with suffix TS feature two speed foot pumps. FOB Shipping Point.

SELF-ELEVATING LIFT CART

Increase efficiency while reducing potentially harmful bending or twisting motions. Easy tension adjustment for height/weight sensitivity. Removable bolt handles. Rolls on 5" x 1", 2 rollers rigid, 2 swivel casters with brake stands. Handles loads up to 800 lbs. FOB Shipping Point.

JET HYDRAULIC SCISSOR LIFT TABLES

Table is easily raised by hydraulic foot pedal. Rolls on 2 fixed and 2 swivel casters for pinpoint positioning. Foot operated locks on swivel casters. FOB Shipping Point.

HANDY INDUSTRAIL WORKSTATION

Lifting capacity of 1000 lbs., making it perfect for working on any maintenance equipment and raises your project to a comfortable 30-1/2” off the floor. Solid steel fabrication and powered by a pneumatic cylinder, with adjustable safety stops. Adjustable lift range from 22” to 30-1/2”. Height adjustment controlled by foot valve makes for easy operation. Simply connect to plant air supply line for easy installation. Not permanently installed so unit can be easily moved when required. FOB Shipping Point.

AUTO-HITE CARTS

Increases efficiency while reducing potentially harmful bending and twisting motions. Features springs with adjustable tension allow user to conveniently "fine tune" to fit the application. Removable handle is bolted on. Rugged heavy duty construction. Rolls on 5 x 2" polyurethane casters -- 2 rigid and 2 swivel with brake. FOB Shipping Point.

REDILIFT SCISSOR LIFT

Power unit - motor, hydraulic pump and oil reservoir, is internally mounted for easy removal and repair or maintenance. Hydraulic cylinders come standard with Velocity Fuses for added safety. Rugged construction combined with quality electrical and mechanical components provide years of safe and reliable service. FOB Shipping Point.

POPULAR OPTIONS

Contact dealer for details.

Foot control with cover.
Oversized platforms up to 48" x 96" (2000-7000 lbs.)
Turntables - 24", 36" & 48".
Beveled toe guards for pit mounting.
Accordion skirts.
Remote mounted power units.

STANDARD SPECIFICATIONS

Capacities from 750 to 7000 lbs.
Three platform sizes -- 24", 36" & 48".
Vertical Travel - 24", 36" & 48".
Standard base is 24"W. (36 & 48" platform models have 6" and 12" stabilizing legs).
1/3 HP. 115/230 volt, 1 phase, 60 cycle.
1 HP motors (115/1/60) on 24" travel (all capacities) and 36" travel (2000-4000 lb. capacity)
1.5 HP motors -- (208, 220, 460/3/60) on 36" travel (5000-7000 lb. capacity) and 48" travel all capacities.
Hand controls are standard with 10' cord.
Velocity fuse equipped cylinders.

PNEUMATIC LIFTS

Provides the flexibility to position materials at both the optimum height and location for peak efficiency and safety. Designed for rugged industrial applications. Unlike multiple small air bag lifts, this Patented Direct Lifting Air Bag technology reduces load bounce and eliminates scissor strain. Fast operation " large internal exhaust provides quick deflation. Using 1 single air bag saves the expense of additional unneeded lift components. Fast delivery " stocked and ready to ship. Lifts can be specially designed per application " contact dealer for details. 5-Year limited warranty on the air bag. FOB Shipping Point.

Lift Requirements

60 psl @ 5 cfm, average.
Approx. 30 minutes of assembly without the purchase of "Factory Assembled" option.
Rotate modules must be center loaded.
Lifts must be anchored to the floor.
A solid platform is required for operating models HA1050-40 and HA1050-60.

PORTABLE SCISSOR LIFT TABLES

Battery operated portable tables make quick work of raising and lowering the platform. 12 volt gelled electrolyte (gell cell) battery is leak-proof and maintenance free. FOB Shipping Point.

STANDARD SPECIFICATIONS

750, 1000 & 1500 lbs.
Vertical travel - 24" & 36".
1/2 HP motor.
Built-in charger.
Hand controls are standard with 10' cord.
Velocity fuse equipped cylinders.
Floor lock.
Phenolic wheels.

POPULAR OPTIONS
Contact dealer for details.

Turntables- 24" & 36" round or square.
Wheels -- steel, rubber or polyurethane.

SCISSOR LIFT TABLE

Engineered and designed for smooth, easy operation and durability. Eliminates bending, lifting, and helps prevent back injuries. Industrial-duty construction includes 1/2" plate steel scissor legs, lifetime lubricated bearings, hydraulic cylinders with chrome-plated rams, and polyurethane seals. Hinged top for easy access to internally mounted motor, pumps and oil reservoir. FOB Shipping Point.

ACCESSORIES (Order with item in drop down menu)

     Platform with Beveled Edge - Required for pit mount. Price Ea. $630.00
     Transport Kit - Two Swivel, Two Rigid Casters   Price Ea. $615.00
     Wheeled Dolly Handle Price Ea. $390.00
     Oversized Platform - Up to an additional 24". Contact dealer for sizes. Price ea. $340.00

OPTIONAL ACCESSORIES - Contact Dealer for pricing

     Wide-base and tandem lifts
     24" travel
     High cycle

BATTERY OPERATED DOUBLE SCISSOR CART

This mobile lift cart brings extra versatility to manufacturing or loading operations. Battery operated cart lifts up to 1,000 lb. loads. Tubular push handle for safe transport. Heavy duty 5" x 2" Poly-on-Steel wheels (2 swivel, 2 rigid) for easy mobility. Swivel wheels feature locking device. Engineered for reliable service year after year. Comes standard with an DC power package. Unique design allows complete DC power unit to fit within the confines of the lift. Comes standard with hand control on 8' coil cord (extended). FOB Shipping Point. Available in AC & Air.

PRESTO PORTABLE ELECTRIC SCISSOR LIFTS

Saves valuable man-hours in the plant or warehouse. Features a leak-proof 12V battery, which powers a DC motor and hydraulic pump to lift and lower loads up to 36” at the touch of a button. Built-in 5 amp battery charger is standard. FOB Shipping Point.

PNEUMATIC SCISSOR LIFTING TABLES

Durable lifts are perfect in dry, rough environments. Require 85 psi at 15 cfm continous factory air. Lifts 1000 to 6000 lbs. Oversized platforms available to 48" x 60". 9" lowered height. 24" travel on all pneumatic scissor lifts. Consult dealer for special requests. FOB Shipping Point.

Lifts can be built to special design and requirements -- contact dealer for details.

-Oversize Platforms Any size, in 1" increments, up to max platform size and end loading capacity reduced by 2% per inch of increase $310.00

-Beveled Edge Platform For pit mounted units, adds 4" to all 4 sides of platform. $618.00

-Lifting Lugs For pit installations - 4 removable eye bolts for attaching chains or slings and lowering into pit. $234.00

-Post Mounted Hand Lower Control $123.00

-Turntable up to 48" x 48" - 4000 lbs. Max. cap. $612.00

-Motion Stabilizer - reduces bounce $330.00

-Stainless Steel Unit Consult dealer

-Conveyor Tops Consult dealer

-Bellows Safety Skirt Consult dealer

-Epoxy Paint or Galvanized Unit Consult dealer

SCISSOR TABLES

Hardened pins reduce wear. Strong chrome-plated piston cylinders resist rust and corrosion. Cylinder is honed hydraulic tubing. Safety toe guard automatically stops platform if lift comes down on toe or other objects - meets OSHA requirements. Emergency lockup automatically locks platform if hydraulic pressure is inadvertently lost. FOB Shipping Point.

SAFETY FEATURES:

Electric Toe/Pinch Point Guard

Emergency Stop if Hose Breaks

Fused 24 volt Push Button Hand Control

Lock in Place Safety Maintenance Support

Meets OSHA Requirements

PHOTOS:

A) Maintenance Safety Support is self storing on the base frame. Unit locks in place while perfroming service.

B) 56 Frame 2 HP Motor helps to insure maximum life and efficiency. Accordian Skirt Optional.

C) Hand Control Liquid Tight fused 24v pendant control.

D) Adjustable Upward Travel Limit Switch.

E) Patented Pinch Point Guard complies with ANSI MH.29.1-1994 and OSHA section 1910.2.2(a)(3)(ii).

SERIES 35 SCISSORS LIFT TABLE

This family of lifts can be used in a wide variety of applications -- pallet built up and tear down, part assembly or disassembly, convey systems and more. Improves worker ergonomics and enhances plant efficiencies. Reduces worker fatigue and reduces the risk of back injuries. Provides a high quality, low cost lifting sloution. Includes standard 3/4" solid steel legs, velocity safety fuses, maintenance safety locks, 1-1/2 HP super torque, 460 VAC, 3 phase 60 Hz Power unit. FOB Shipping Point.

PORTABLE SCISSOR LIFT TABLES

Heavy duty 12V DC power unit with deep cycle battery and an on-board battery charger is standard -- a battery charge indicator is optional. Rolls on 8" phenolic casters, 2 swivel, 2 rigid. Complete with floor lock and patented electric pinch point guards. Push buttons to raise and lower lift are located on the power unit and in the pendant style push button control. Key-operated ON/OFF control for better security is built into the power unit. Minimum frame width is 34". Add 25" to platform length for the overall length. FOB Shipping Point.

POWER TRACTION DRIVE SYSTEM

Reduce work fatigue and injury with the Portable Traction Drive Option.
Allows a single operator to safely and ergonomically transport products.

This factory installed option is available on portable equipment including the Portable Scissor Table, Pallet Master/Pallet Servers, Tilt Master and High Rise Lift Truck. An alternative to costly fork trucks, the PTDS includes a combination throttle/direction butterfly style controller, an adjustable yoke and auto reverse emergency "belly" switch. Power pack is 42"W. FOB Shipping Point.

LOW PROFILE SCISSORS TABLE

Safety features include: electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, fused 24V hand held control and maintenance supports to name a few. Remote power unit comes complete with a plastic cover to protect the motor from dust and debris and measures 32-1/2 L x 12" W x 12-1/2" H. Please specify Voltage and Phase. FOB Shipping Point.

GROUND LIFT SCISSORS TABLE

Contact factory for accordion skirting other sizes. FOB Shipping Point.

POWER TRACTION DRIVE SYSTEM

This factory installed option is available on portable equipment including the Portable Scissor Table, Pallet Master/Pallet Servers, Tilt Master and High Rise Lift Truck. An alternative to costly fork trucks, the PTDS includes a combination throttle/direction butterfly style controller, an adjustable yoke and auto reverse emergency "belly" switch. Power pack is 42"W. FOB Shipping Point.

ZERO LIFT AND TILT TABLES

Features fused 24V, hand control with 4 buttons. Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life. Electric pinch point guards on front of platform protect personnel. Upper travel limit switch reduces wear on components. FOB Shipping Point.

FLOOR LEVEL LIFT TABLE

Eliminates the need for fork lift trucks, ramps or expensive pit mounting. Adjusts to a comfortable work level for increased efficiency, productivity and worker safety. Safety edge/toe guard protects against toe injury. 1 HP motor, 115 Volt, 1 phase, 60 cycle is standard. Available with either a push button hand control with 8' coil cord or foot control with cover -- please specify. FOB Shipping Point.

HYDRAULIC TRUCK DOCK SCISSOR LIFT

Saves time and reduces manhours where there are no docks. Checkered plate deck is made of heavy gauge steel for hard use. Hydraulic unit features emergency automatic stop if line breaks. Complete with upper travel limit switch, and overload relief. Push-button control is 24 volt on 20' coiled cord. Prewired control box includes Magnetic Starter and overload fuse. High visible hand rails are removable. Built for years of daily use, with minimum maintenance. Standard 6.5 HP 208-230/460 V, 3-phase, 60 Hz motor. FOB Shipping Point.

Two Speed Pump
Replace standard pump with 2 speed and increase lifting speed by 55% when lift is unloaded.

Warning Beeper & Strobe
Sounds during the lift and lowering operation. 80 decibels.

Stop Signal Sign
Guides driver so truck will be properly positioned. Prevents damage to the truck door and scissor lift. Driver backs up until truck touches signal arm. Adjustable height and projection for different truck-to-dock requirements.

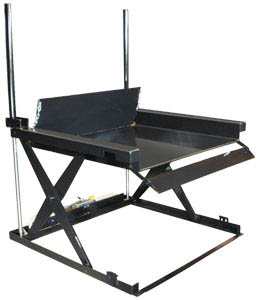

AUTOQUIP'S NEAR ZERO SCISSORS LIFT

Combining the near-zero lowered height of a traditional pan-style lift with the extremely low reach-over distance previously available in expensive mast-style lifts. Features the industry's lowest reach-over of 4" providing easy operator access to pallets and loads being built up or broken down over the side of the lift. The low reach-over also provides for the smallest footprint in the industry for pan lifts. Available in both 36" and 48" travel models. Also available in both hydraulic and pneumatic actuation. Features platform sizes to meet all common load cube sizes. FOB Shipping Point.

(back to top)
SCISSOR PALLET TRUCKS


HI-RISE SCISSOR LIFT Helps prevent back injuries caused by bending and lifting. Engineered and built to stand up to the hard rigors of industrial work. Available in Manual Pump or Battery Operated models (complete with 12V/125A heavy-duty battery with built-in charger that plugs into any 110 volt outlet). All models also available in 20.5" width configuration. ECO models feature automatic braking system in raised position. MOBILE models feature lift and move in any position capability. MOBILE models also available in Stainless Steel construction. FOB Shipping Point.	ZENITH PALLET SCIZZOR LIFT Lifts 2200 lbs up to 31" on reinforced forks that measure 3-1/2" lowered height. Polyurethane wheels and load rollers make movement easy. Steering wheels measure 6" x 2"; fork wheels measure 3" x 2". Two bottom rollers automatically brake to the floor when the forks reach a lifting height of 17". Handle features a 3 position-finger-tip control to raise, lower or neutral. For use with single faced pallets or skids only. FOB Shipping Point.	THE TILTMASTER Functions as both basket tote box truck and a tilting table. Reduces back fatigue and injuries -- increase productivity. Tilts up to 90�. To be used with open bottom pallets and skids. DC battery cut-off switch is an emergency stop and reduces possible battery drain -- prevents accidental operations. Also includes displacement style cylinder with hydraulic safety stop velocity fuse which locks cylinder in position in the event of a hydraulic line rupture. Fully enclosed nose plate. Clean vinyl pinch point and debris guard. Special handle hinge design eliminates pinched fingers and electric cords. Large dia. wheels for easy mobility. Industrial strength motors and components. Plastic hydraulic reservoir eliminates rust and corrosion in hydraulic system. FOB Shipping Point.

ELECTRIC HIGH LIFT PALLET TRUCK Ideal for work positioning stations. Smooth operating battery lifter makes short work of heavy loads. Easy one man operation saves time and effort. Rolls smoothly on polyurethane wheels. 180° steering radius. 3.3" lowered height. Comfort coated handles. FOB Shipping Point.	MANUAL HIGH LIFT PALLET TRUCK Rolls smoothly on moldon polyurethane wheels. 180° steering arc. Closed pallets must be placed on top of forks. 3.6" lowered fork height. FOB Shipping Point.	TOTE LIFTER Two operations available -- Hand Pump and 12V DC Power with rocket switch to raise and lower. Hand Pump design features an ergonomic pump handle with 2 lifting speeds to accommodate for light or heavy loads. Suffix "SS" for stainless steel construction. FOB Shipping Point.

HIGH RISE LIFT TRUCK Heavy loads can be lifted by electric hydraulic power and manually moved without the use of a fork truck. 12V DC power with on-board battery charger standard. Heavy loads can be lifted by electric hydraulic power and manually moved until auto brake engages at approximately 8". Push buttons to raise and lower lift are located on power unit. Key-operated ON/OFF control for better security is built into the power units. FOB Shipping Point.

(back to top)
SCISSOR LIFT TABLES


MECHANICAL LIFT TABLE Gear operation allows raising of heavy loads at 1/8" per crank turn - lighter loads or down travel at 5/16" per turn. Strong heavy gauge steel throughout. Complete with 5" casters (2 swivel, 2 rigid) and floor lock. FOB Shipping Point.	POST LIFT TABLE Top is raised and lowered by a central lifting cylinder. Guide posts provide stability; 2 posts for lighter capacity and 4 posts for 2000 lbs. and over. Manual units have foot operated hydraulic pump and tip toe release. Built and designed for long service. Battery units use an electromechanical screw drive linear actuator powered by 12 volt, 35 amp gel cell, leak-proof and maintenance-free battery. 10 amp battery charger is standard. All units have special contoured base for maximum lowered height. FOB Shipping Point.	1, 2 OR 4 POST HYDRAULIC LIFT TABLES Hydraulic center post lifts tabletop with rigidity. 300 lb. cap. unit has one guide post, 1,000 lb. cap. unit has 2 guide posts. Four guide posts for the other units. Rolls smoothly on durable heavy duty casters. FOB Shipping Point.

(back to top)
SCISSOR LIFT AND TILT TABLES


EFFICIENCY MASTER 45° Tilt Series...tilts pallets, crates, boxes or baskets to 45° to facilitate loading or unloading. Deck height is 24" when horizontal. Tables feature all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. Equipped with an industrial quality, 56 frame 2 HP motor -- delivers best torque with minimal amperage draw and maximum life. Standard voltage is 208-230/460. Push button hand control is standard. 90° Tilt Series...same features as 45° Tilt Series but features a full 90° of tilt. Ideal for upending products in shipping and receiving operations. Must be lagged to the floor. Other sizes available - call dealer for more information.	PORTABLE CONTAINER TILTERS Positions parts within fingertip reach of the workers without the need to bend or stretch. Battery operated tilter features a compact, leak-proof 12 Volt, gel cell battery. Complete with an external 10 amp battery charger. Hand held push button control -- 8' coil cord standard. FOB Shipping Point.	GROUND LIFT TILTER A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on all 4 sides. Powered by a remote 2 HP, 208-230/460V motor complete with a protective cover. Standard control is a push button hand control which operates on 24V for maximum operator safety. Pinch point guards are provided on all four sides of the unit. Features upper travel limit switch. FOB Shipping Point.

UNI-TILT Tilts up to 40° -- by depressing the selector pedal the operator can choose to lift while tilting or tilt, then lift. As the platform lifts, the load center moves back keeping the load out of the working area. FOB Shipping Point.	LIFT AND TILT TABLE Features toe/pinch guard. Emergency stop if hose breaks. Fused 24V push button control. Lock-in place safety maintenance support. 45° maximum tilt, 36" vertical travel. FOB Shipping Point.
