CANTILEVER SURFACE MOUNT DOCK LIFTS - G-LINE

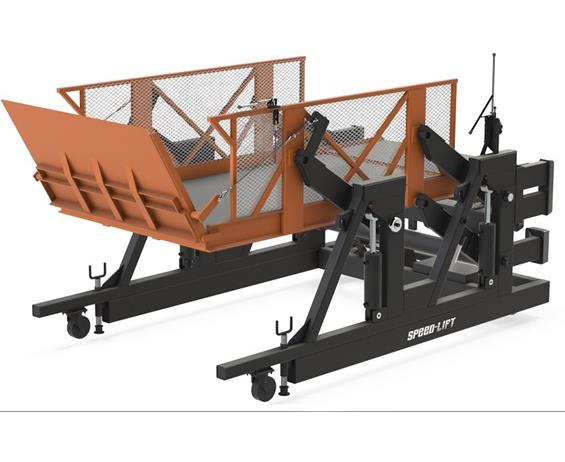

Click image to enlarge CANTILEVER SURFACE MOUNT DOCK LIFTS - G-LINE
Don't Run with Scissors. The Speed-Lift™ is a Safer, Faster, & More Robust Way to Lift.
- Lifts up to 15,000 lbs.
- Fast - 3X faster than scissor lifts.
- Safe - Automatic folding ramps and bridges. No chains or ramps to move.
- Robust - No bollards or pits required.
When you don't have a dock, Superior's Cantilever, Surface Mount Dock Lift is the solution. Simply level, anchor, and add power. No pits, drains, bollards, building permits, or other costly on-site infrastructure required. Designed to safely unload standard-height trucks (44" - 56") down to ground level. All mechanical, hydraulic, and electrical systems are self-contained within the frame. No separate control unit is required. Lifts are made with high-grade steel and designed to operate for more than 30 years with routine maintenance and withstand severe weather conditions. Platform, ramp, and bridge are non-skid diamond plate. Powered by 230V/60/3Ph (460/480V available). EXWORKS origin.
- Rated load across entire platform.
- 5-year parts & labor warranty.
- Customization available.
See Related Items tab for Superior's S-Line, P-Line and Mobile Lift.
Click here to see more Dock Equipment-Lift!
| 'CANTILEVER SURFACE MOUNT DOCK LIFTS - G-LINE' | |||||||||||
| Product No. | Cap. (lbs.) | Platform W x L |
Lowered Height | Raised Height | Speed FPM | Motor HP | Wt. (lbs.) | 'Base Price Ea.' | Quantity | ||
| HSL-10000-C | 10000 | 68 x 120" | 4" | 58" | 28 | 15 | 7170 |
|
|||
| HSL-10000-D | 10000 | 68 x 150" | 4" | 58" | 28 | 15 | 7810 |
|
|||
| HSL-10000-E | 10000 | 68 x 168" | 4" | 58" | 28 | 15 | 8500 |
|
|||
| HSL-15000-C | 15000 | 68 x 120" | 4" | 58" | 28 | 20 | 8800 |
|
|||
| HSL-15000-D | 15000 | 68 x 150" | 4" | 58" | 28 | 20 | 9600 |
|
|||
| HSL-15000-E | 15000 | 68 x 168" | 4" | 58" | 28 | 20 | 10110 |
|
|||
