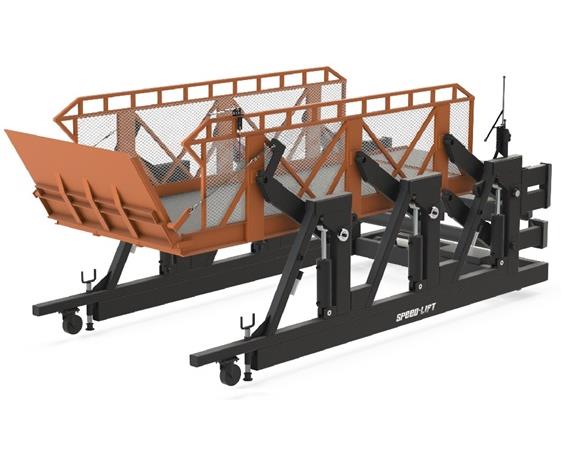

CANTILEVER SURFACE MOUNT DOCK LIFTS - P-LINE
Click image to enlarge CANTILEVER SURFACE MOUNT DOCK LIFTS - P-LINE
Don't Run with Scissors. The Speed-Lift™ is a Safer, Faster, & More Robust Way to Lift.
- Lifts up to 25,000 lbs.
- Fast - 3X faster than scissor lifts.
- Safe - Automatic folding ramps and bridges. No chains or ramps to move.
- Robust - No bollards or pits required.
When you don't have a dock, Superior's Cantilever, Surface Mount Dock Lift is the solution. Simply level, anchor, and add power. No pits, drains, bollards, building permits, or other costly on-site infrastructure required. Designed to safely unload standard-height trucks (44" - 56") down to ground level. All mechanical, hydraulic, and electrical systems are self-contained within the frame. No separate control unit is required. Lifts are made with high-grade steel and designed to operate for more than 30 years with routine maintenance and withstand severe weather conditions. Platform, ramp, and bridge are non-skid diamond plate. Powered by 230V/60/3Ph (460/480V available). EXWORKS origin.
- Rated load across entire platform.
- 5-year parts & labor warranty.
- Customization available.
See Related Items tab for Superior's S-Line, G-Line and Mobile Lift.
Click here to see more Dock Equipment-Lift!
| 'CANTILEVER SURFACE MOUNT DOCK LIFTS - P-LINE' | |||||||||||
| Product No. | Cap. (lbs.) | Platform W x L |
Lowered Height | Raised Height | Speed FPM | Motor HP | Wt. (lbs.) | 'Base Price Ea.' | Quantity | ||
| HSL-25000-E | 25000 | 68 x 168" | 4" | 58" | 20 | 20 | 11810 |
|
|||
| HSL-25000-F | 25000 | 68 x 216" | 4" | 58" | 20 | 20 | 13220 |
|
|||
| HSL-25000-G | 25000 | 68 x 252" | 4" | 58" | 20 | 20 | 14270 |
|
|||
