VFD CONTROLLED DUAL SPEED ELECTRIC CHAIN HOISTS

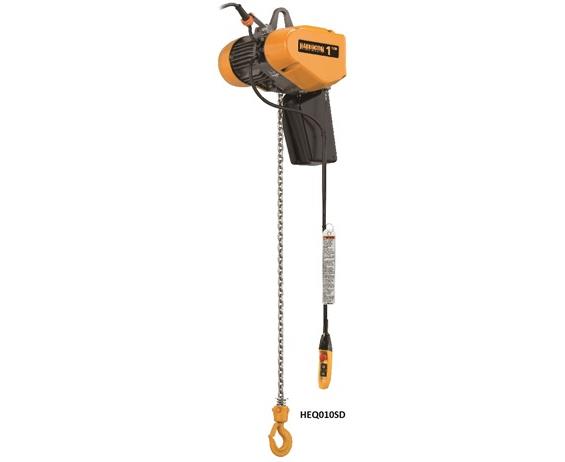

Click image to enlarge VFD CONTROLLED DUAL SPEED ELECTRIC CHAIN HOISTS
-
Ergonomically designed for easy installation and operation. IP55 rated for indoor/outdoor use. 5 year brake warranty.
The EQ/SEQ dual speed electric chain hoists are loaded with cutting-edge features such as a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Both 3-phase EQ and 1-phase SEQ come standard as dual speed via variable frequency drive (VFD), a true revolution for single phase hoist controls. Both hoists have ASME H4 classification, IP55 rated enclosure and IP65 pendant. 208-230V/460-3-50/60 or 380-460V-3-50/60 power supply on the EQ, and 115/230V-1-60 (reconnectable) power supply on the SEQ. Optional suspension bar available for low headroom or enclosed track trolley applications. Push/Pull, geared or motorized trolleys (on the EQ) unites available. Call for details. FOB Shipping Point.
Click here to see more Hoists-Chain!
| 'VFD CONTROLLED DUAL SPEED ELECTRIC CHAIN HOISTS' | ||||||||||||||
| Product No. | Description | Cap. (Tons) |
Std. Lift |
Lift Speed FPM-High |
Lift Speed FPM-Low |
Lift Speed FPM-No Load High Speed |
Pendant Cord |
Min. Headroom Top Hook |
Min. Headroom Susp. Bar |
Wt. (lbs.) | Price Ea. | Quantity | ||
| HEQ001SD | EQ 3-Phase | 1/8 | 10' | 56 | 9.3 | 72 | 8.2' | 17.3 | 15.6 | 71 |
|
|||
| HEQ003SD | EQ 3-Phase | 1/4 | 10' | 33 | 5.5 | 43 | 8.2' | 17.3 | 15.6 | 71 |
|
|||
| HEQ005SD | EQ 3-Phase | 1/2 | 10' | 25 | 4.2 | 32 | 8.2' | 18 | 16.1 | 75 |
|
|||
| HEQ010SD | EQ 3-Phase | 1 | 10' | 23 | 3.8 | 30 | 8.2' | 20.7 | 18.3 | 97 |
|
|||
| HSEQ001SD | SEQ 1-Phase | 1/8 | 10' | 56 | 9.3 | 72 | 8.2' | 17.3 | 15.6 | 71 |
|
|||
| HSEQ003SD | SEQ 1-Phase | 1/4 | 10' | 33 | 5.5 | 43 | 8.2' | 17.3 | 15.6 | 71 |
|
|||
| HSEQ005SD | SEQ 1-Phase | 1/2 | 10' | 25 | 4.2 | 32 | 8.2' | 18 | 16.1 | 75 |
|
|||
| HSEQ010SD | SEQ 1-Phase | 1 | 10' | 17 | 3.9 | 22 | 8.2' | 20.7 | 18.3 | 97 |
|
|||
