COFFING® HOISTS JLC ELECTRIC CHAIN HOISTS WITH RIGID TOP HOOK

Name: COFFING® HOISTS JLC ELECTRIC CHAIN HOISTS WITH RIGID TOP HOOK
Brand: Handling Systems
SKU: H08201W
Price: 2897.69 USD
Availability: InStock

printable version

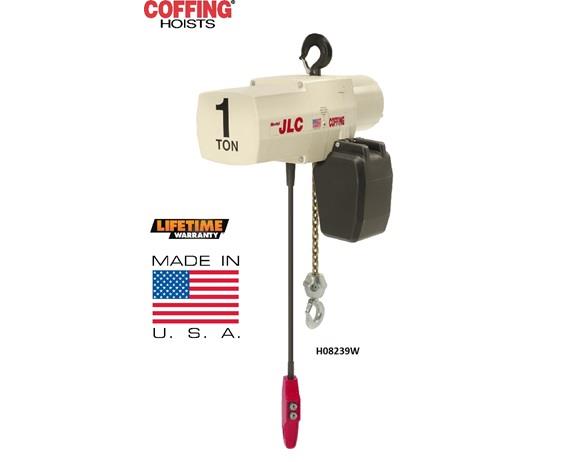

Click image to enlarge COFFING® HOISTS JLC ELECTRIC CHAIN HOISTS WITH RIGID TOP HOOK

The Coffing JLC is engineered and built for the heavy-duty demands of industrial applications. Compact in size but big on features, the JLC boasts a multiple disc motor brake, overload clutch, and chain end stop for safety. FOB Shipping Point.

Voltages include 115/230 - single phase, 230/460, 208, 380, 415, 575 - three phase, 60 hertz standard, 50 hertz available.
Easy access to controls and motor leads for changing voltage or servicing the hoist.
Heavy-duty multiple disc motor brake with direct acting design for positive load spotting and holding.
5-pocket load sheave for smoother lifting and reduced chain wear.
Adjustable limit switches to regulate upper and lower load travel.
Mechanical overload protection device protects hoist, operator and supporting structures.
Two-speed hoist models optional with 3:1 speed ratio, 3-phase, single voltage only.
Oil bath transmission and precision machined alloy steel gears for longer, quieter operations.
Compact aluminum housing designed for portability and ease of installation.
Optional VFD.

Call for additional capacities and lifts. Also available in lug mount configurations with plain, geared or motorized trolley.

*Hoists are double reeved on 2 ton capacity hoists.

Steel surcharge may apply.

Click here to see more Hoists & Equipment!

Prices and Availability Subject to Change

'COFFING� HOISTS JLC ELECTRIC CHAIN HOISTS WITH RIGID TOP HOOK'

Product No.

Phase

Cap. (Tons)

Lift Height

Lift Speed (fpm)

Motor HP

Head Room

Wt. (lbs.)

Price Ea.

Quantity

H08201W

1/8

10'

1/2

18-1/8"

List Price: $3219.66
TODAY: $2897.69

H08260W

1/8

15'

1/2

18-1/8"

List Price: $3398.69
TODAY: $3058.82

H08261W

1/8

20'

1/2

18-1/8"

List Price: $3577.72
TODAY: $3219.95

H08210W

1/4

10'

1/2

18-1/8"

List Price: $3390.27
TODAY: $3051.24

H08213W

1/4

10'

1/2

18-1/8"

List Price: $3590.21
TODAY: $3231.19

H08211W

1/4

15'

1/2

18-1/8"

List Price: $3569.29
TODAY: $3212.36

H08214W

1/4

15'

1/2

18-1/8"

List Price: $3769.23
TODAY: $3392.31

H08212W

1/4

20'

1/2

18-1/8"

List Price: $3748.31
TODAY: $3373.48

H08215W

1/4

20'

1/2

18-1/8"

List Price: $3948.25
TODAY: $3553.43

H08221W

1/2

10'

1/2

18-1/8"

List Price: $3590.21
TODAY: $3231.19

H08230W

1/2

10'

18-1/8"

List Price: $3851.00
TODAY: $3465.90

H08222W

1/2

15'

1/2

18-1/8"

List Price: $3769.23
TODAY: $3392.31

H08231W

1/2

15'

18-1/8"

List Price: $4030.02
TODAY: $3627.02

H08223W

1/2

20'

1/2

18-1/8"

List Price: $3948.25
TODAY: $3553.43

H08232W

1/2

20'

18-1/8"

100

List Price: $4206.86
TODAY: $3786.17

H08239W

10'

18-1/8"

List Price: $3994.43
TODAY: $3594.99

H08240W

15'

18-1/8"

List Price: $4173.45
TODAY: $3756.10

H08241W

20'

18-1/8"

102

List Price: $4352.47
TODAY: $3917.22

H08247W

10'

20-13/16"

104

List Price: $4721.38
TODAY: $4249.24

H08248W

15'

20-13/16"

112

List Price: $5054.16
TODAY: $4548.74

H08249W

20'

20-13/16"

120

List Price: $5367.39
TODAY: $4830.65

H08203W

1/8

10'

1/4

18-1/8"

List Price: $3219.66
TODAY: $2897.69

H08262W

1/8

15'

1/4

18-1/8"

List Price: $3398.69
TODAY: $3058.82

H08263W

1/8

20'

1/4

18-1/8"

List Price: $3577.72
TODAY: $3219.95

H08206W

1/4

10'

1/4

18-1/8"

List Price: $3390.27
TODAY: $3051.24

H08217W

1/4

10'

1/2

18-1/8"

List Price: $3590.21
TODAY: $3231.19

H08207W

1/4

15'

1/4

18-1/8"

List Price: $3569.29
TODAY: $3212.36

H08218W

1/4

15'

1/2

18-1/8"

List Price: $3769.23
TODAY: $3392.31

H08208W

1/4

20'

1/4

18-1/8"

List Price: $3748.31
TODAY: $3373.48

H08219W

1/4

20'

1/2

18-1/8"

List Price: $3948.25
TODAY: $3553.43

H08225W

1/2

10'

1/2

18-1/8

List Price: $3590.21
TODAY: $3231.19

H08235W

1/2

10'

18-1/8"

List Price: $3851.00
TODAY: $3465.90

H08227W

1/2

15'

1/2

18-1/8"

List Price: $3769.23
TODAY: $3392.31

H08236W

1/2

15'

18-1/8"

List Price: $4030.02
TODAY: $3627.02

H08228W

1/2

20'

1/2

18-1/8"

List Price: $3948.25
TODAY: $3553.43

H08237W

1/2

20'

18-1/8"

100

List Price: $4206.86
TODAY: $3786.17

H08243W

10'

18-1/8"

List Price: $3994.43
TODAY: $3594.99

H08244W

15'

18-1/8"

List Price: $4173.45
TODAY: $3756.10

H08245W

20'

18-1/8"

102

List Price: $4352.47
TODAY: $3917.22

H08251W

10'

20-13/16"

104

List Price: $4721.38
TODAY: $4249.24

H08252W

15'

20-13/16"

112

List Price: $5054.16
TODAY: $4548.74

H08253W

20'

20-13/16"

120

List Price: $5367.39
TODAY: $4830.65
