P153313
ECOA SPACESAVER LIFTILT SERIES TILTERS

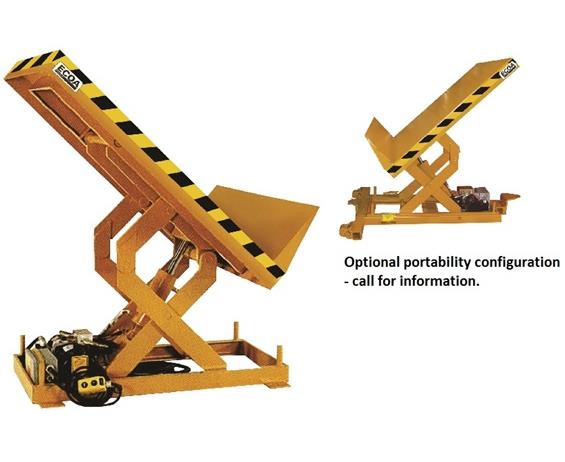

Click image to enlarge ECOA SPACESAVER LIFTILT SERIES TILTERS
-
Hydraulic SpaceSaver Lift & Tilt Tables.
Heavy-Duty Lift & Tilt tables with capacities of 2,000 to 4,000 lbs., and tilt angles up to 45° with platform sizes of 24 x 48" to 48 x 48". The HCLTLT lifts and tilts within its own base frame, requiring minimal floor space to operate. FOB Shipping Point.
Standard Features
- Base and platform leg rollers are captured within the channel frame for maximum stability.
- 1HP 115/1/60, optional power units available.
- 24V operating control voltage.
- Push button pendant controls - foot controls optional.
- 12" high lip on pivot end.
- Double-acting hydraulic cylinders.
- Ecoa yellow machinery enamel.
- Lifetime lubricated bearings on all rollers and pivot points.
Click here to see more Lifts / Lifting Equipment!
Prices and Availability Subject to Change
| 'ECOA SPACESAVER LIFTILT SERIES TILTERS' | |||||||||||||
| Product No. | Description | Angle of Tilt | Capacity (lbs.) | Platform Size Standard |
Platform Size Maximum |
Base Frame | Lowered Height | Motor Std. HP | Wt. (lbs.) | Price Ea. | Quantity | ||
| HCLTLT-02-45 | Tilter | 45° | 2000 | 24 x 48" | 48 x 48" | 18 x 42" | 6-1/8" | 1 | 675 |
|
In Stock | ||
| HCLTLT-04-45 | Tilter | 45° | 4000 | 24 x 48" | 48 x 48" | 24 x 36" | 10" | 1 | 725 |
|
In Stock | ||
| HCLTLT-STRAIGHTSKIRT-ADDER | Oversize platform up to maximum size with straight skirt/no toeguards Adder | - | - | - | - | - | - | - | - |
|
|||
