WOVEN WIRE PARTITION

WOVEN WIRE PARTITION
Click image to enlarge

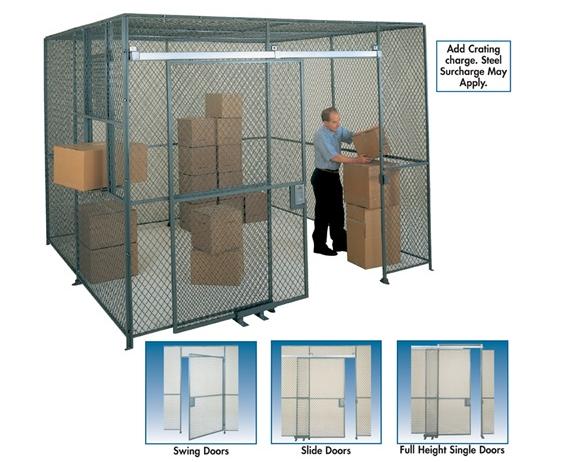

    A fast and economical way to create security areas. Rugged steel wire partitions provide long-lasting security, thanks to years of manufacturing experience.
Here’s a way to section off hazard areas, construct tool rooms, maintenance rooms, stock rooms, electrical equipment rooms… all at low cost and fast installation. Partitions are coated with a Gray enamel, providing a long-lasting smooth high-gloss finish. Quality and dependability you can’t find in any other partitions. FOB Shipping Point

Panels include…

Floor Shoes…High grade iron casting with set screw, plus two slotted holes for floor attachment. Anchors are included.

Top Capping Channels… Are 1 1/2" x 1/2 " x 1/8" hot rolled channel. Two fasteners are provided with each channel.

Standard Size Panels…are available in 1’, 2’, 3’, 4’, and 5’, widths; 7’, 8’, 9’ and 10’ heights. Most jobs can be planned around these even foot dimensions.

Stock Hinged Doors…are made in 3’ and 4’ widths and are 7’ high with transom above. No transom on 7’ high partition. Unless requested otherwise, doors are supplied hinges left, swing out (viewed from outside partition enclosure).

Sliding Single Doors…are available 3’, 4’, 5’ and 6’ widths and are 7’ clear with transom above.

Full Height Single Slide Doors…are made to provide overhead height up to the height of the partitioning (8’, 9’ or 10’) and 5’, 6’, 8’ and 10’ wide.

All necessary bolts, nuts, clips and floor lags included.

Note: All doors complete with padlock lugs only. For mortise lock add model No. HML. Item can be found in Accessories for Woven Wire Partitionsin the Related Items tab below.

See Related Itemstab for available accessories.

Add HWWP-CRATING per order for Crating Charge. Steel surcharge may apply.

Click here to see more Doors-Wire!

Prices and Availability Subject to Change

WOVEN WIRE PARTITION
Product No. Description Height Width Closure Wt. (lbs.) Crating Price Ea. Quantity
HFP71 Standard woven wire panel 7' 1' - 23 One HWWP-CRATING must be added per order.
List Price: $89.89
TODAY: $80.90
HFP72 Standard woven wire panel 7' 2' - 32 One HWWP-CRATING must be added per order.
List Price: $98.85
TODAY: $88.96
HFP73 Standard woven wire panel 7' 3' - 40 One HWWP-CRATING must be added per order.
List Price: $116.73
TODAY: $105.06
HFP74 Standard woven wire panel 7' 4' - 49 One HWWP-CRATING must be added per order.
List Price: $133.85
TODAY: $120.46
HSP75 Standard woven wire panel 7' 5' - 58 One HWWP-CRATING must be added per order.
List Price: $135.90
TODAY: $122.31
HCHS307 Swing doors - 7' Opening 7' 3' Padlock Lug 72 One HWWP-CRATING must be added per order.
List Price: $241.20
TODAY: $217.08
HCHS407 Swing doors - 7' Opening 7' 4' Padlock Lug 83 One HWWP-CRATING must be added per order.
List Price: $286.07
TODAY: $257.46
HCSNT307 Slide doors - 7' Opening 7' 3' Padlock Lug 85 One HWWP-CRATING must be added per order.
List Price: $368.52
TODAY: $331.67
HCSNT407 Slide doors - 7' Opening 7' 4' Padlock Lug 101 One HWWP-CRATING must be added per order.
List Price: $374.17
TODAY: $336.75
HCSNT507 Slide doors - 7' Opening 7' 5' Padlock Lug 112 One HWWP-CRATING must be added per order.
List Price: $393.90
TODAY: $354.51
HCSNT607 Slide doors - 7' Opening 7' 6' Padlock Lug 125 One HWWP-CRATING must be added per order.
List Price: $462.87
TODAY: $416.58
HFP81 Standard woven wire panel 8' 1' - 25 One HWWP-CRATING must be added per order.
List Price: $90.93
TODAY: $81.84
HFP82 Standard woven wire panel 8' 2' - 35 One HWWP-CRATING must be added per order.
List Price: $109.97
TODAY: $98.97
HFP83 Standard woven wire panel 8' 3' - 45 One HWWP-CRATING must be added per order.
List Price: $124.50
TODAY: $112.05
HFP84 Standard woven wire panel 8' 4' - 55 One HWWP-CRATING must be added per order.
List Price: $142.01
TODAY: $127.81
HSP85 Standard woven wire panel 8' 5' - 64 One HWWP-CRATING must be added per order.
List Price: $144.11
TODAY: $129.70
HCHS308 Swing doors - 7' Opening 8' 3' Padlock Lug 76 One HWWP-CRATING must be added per order.
List Price: $290.53
TODAY: $261.48
HCHS408 Swing doors - 7' Opening 8' 4' Padlock Lug 91 One HWWP-CRATING must be added per order.
List Price: $341.99
TODAY: $307.79
HCST308 Slide doors - 7' Opening 8' 3' Padlock Lug 91 One HWWP-CRATING must be added per order.
List Price: $403.74
TODAY: $363.37
HCST408 Slide doors - 7' Opening 8' 4' Padlock Lug 111 One HWWP-CRATING must be added per order.
List Price: $410.52
TODAY: $369.47
HCST508 Slide doors - 7' Opening 8' 5' Padlock Lug 128 One HWWP-CRATING must be added per order.
List Price: $444.01
TODAY: $399.61
HCST608 Slide doors - 7' Opening 8' 6' Padlock Lug 143 One HWWP-CRATING must be added per order.
List Price: $528.31
TODAY: $475.48
HCSS508 Full height single slide doors 8' 5' Padlock Lug 207 One HWWP-CRATING must be added per order.
List Price: $680.78
TODAY: $612.70
HCSS608 Full height single slide doors 8' 6' Padlock Lug 230 One HWWP-CRATING must be added per order.
List Price: $756.60
TODAY: $680.94
HCSS808 Full height single slide doors 8' 8' Padlock Lug 283 One HWWP-CRATING must be added per order.
List Price: $942.48
TODAY: $848.23
HCSS1008 Full height single slide doors 8' 10' Padlock Lug 315 One HWWP-CRATING must be added per order.
List Price: $1053.71
TODAY: $948.34
HFP91 Standard woven wire panel 9' 1' - 28 One HWWP-CRATING must be added per order.
List Price: $106.42
TODAY: $95.78
HFP92 Standard woven wire panel 9' 2' - 45 One HWWP-CRATING must be added per order.
List Price: $125.34
TODAY: $112.81
HFP93 Standard woven wire panel 9' 3' - 49 One HWWP-CRATING must be added per order.
List Price: $128.45
TODAY: $115.60
HFP94 Standard woven wire panel 9' 4' - 59 One HWWP-CRATING must be added per order.
List Price: $157.55
TODAY: $141.80
HSP95 Standard woven wire panel 9' 5' - 71 One HWWP-CRATING must be added per order.
List Price: $161.11
TODAY: $145.00
HCHS309 Swing doors - 7' Opening 9' 3' Padlock Lug 83 One HWWP-CRATING must be added per order.
List Price: $305.72
TODAY: $275.15
HCHS409 Swing doors - 7' Opening 9' 4' Padlock Lug 96 One HWWP-CRATING must be added per order.
List Price: $358.74
TODAY: $322.87
HCST309 Slide doors - 7' Opening 9' 3' Padlock Lug 97 One HWWP-CRATING must be added per order.
List Price: $413.63
TODAY: $372.27
HCST409 Slide doors - 7' Opening 9' 4' Padlock Lug 116 One HWWP-CRATING must be added per order.
List Price: $431.97
TODAY: $388.77
HCST509 Slide doors - 7' Opening 9' 5' Padlock Lug 132 One HWWP-CRATING must be added per order.
List Price: $467.37
TODAY: $420.63
HCST609 Slide doors - 7' Opening 9' 6' Padlock Lug 148 One HWWP-CRATING must be added per order.
List Price: $550.40
TODAY: $495.36
HCSS509 Full height single slide doors 9' 5' Padlock Lug 223 One HWWP-CRATING must be added per order.
List Price: $725.28
TODAY: $652.75
HCSS609 Full height single slide doors 9' 6' Padlock Lug 237 One HWWP-CRATING must be added per order.
List Price: $810.79
TODAY: $729.71
HCSS809 Full height single slide doors 9' 8' Padlock Lug 295 One HWWP-CRATING must be added per order.
List Price: $999.51
TODAY: $899.56
HCSS1009 Full height single slide doors 9' 10' Padlock Lug 338 One HWWP-CRATING must be added per order.
List Price: $1042.34
TODAY: $938.11
HFP101 Standard woven wire panel 10' 1' - 31 One HWWP-CRATING must be added per order.
List Price: $131.03
TODAY: $117.93
HFP102 Standard woven wire panel 10' 2' - 44 One HWWP-CRATING must be added per order.
List Price: $140.02
TODAY: $126.02
HFP103 Standard woven wire panel 10' 3' - 58 One HWWP-CRATING must be added per order.
List Price: $156.03
TODAY: $140.43
HFP104 Standard woven wire panel 10' 4' - 71 One HWWP-CRATING must be added per order.
List Price: $169.21
TODAY: $152.29
HSP105 Standard woven wire panel 10' 5' - 82 One HWWP-CRATING must be added per order.
List Price: $177.62
TODAY: $159.86
HCHS310 Swing doors - 7' Opening 10' 3' Padlock Lug 88 One HWWP-CRATING must be added per order.
List Price: $317.33
TODAY: $285.60
HCHS410 Swing doors - 7' Opening 10' 4' Padlock Lug 101 One HWWP-CRATING must be added per order.
List Price: $371.37
TODAY: $334.23
HCST310 Slide doors - 7' Opening 10' 3' Padlock Lug 101 One HWWP-CRATING must be added per order.
List Price: $317.33
TODAY: $285.60
HCST410 Slide doors - 7' Opening 10' 4' Padlock Lug 122 One HWWP-CRATING must be added per order.
List Price: $449.83
TODAY: $404.85
HCST510 Slide doors - 7' Opening 10' 5' Padlock Lug 138 One HWWP-CRATING must be added per order.
List Price: $490.64
TODAY: $441.58
HCST610 Slide doors - 7' Opening 10' 6' Padlock Lug 153 One HWWP-CRATING must be added per order.
List Price: $580.03
TODAY: $522.03
HCSS510 Full height single slide doors 10' 5' Padlock Lug 242 One HWWP-CRATING must be added per order.
List Price: $800.52
TODAY: $720.47
HCSS610 Full height single slide doors 10' 6' Padlock Lug 276 One HWWP-CRATING must be added per order.
List Price: $916.03
TODAY: $824.43
HCSS810 Full height single slide doors 10' 8' Padlock Lug 327 One HWWP-CRATING must be added per order.
List Price: $1100.02
TODAY: $990.02
HCSS1010 Full height single slide doors 10' 10' Padlock Lug 363 One HWWP-CRATING must be added per order.
List Price: $1247.51
TODAY: $1122.76
HWWP-CRATING Crating Charge (One crating charge must be added per order) - - - - One HWWP-CRATING must be added per order.
List Price: $167.58
TODAY: $150.82

ACCESSORIES FOR WOVEN WIRE PARTITIONS
Product No. Description Accessory Wt. (lbs.) Price Ea. Quantity
HMLH - Mortise Lock -
List Price: $84.10
TODAY: $75.69
HCRS-7 7' high Rigid Stiffener Post - Required for panel runs of 15' or more. 22
List Price: $56.64
TODAY: $50.98
HCRS-8 8' high Rigid Stiffener Post - Required for panel runs of 15' or more. 25
List Price: $62.84
TODAY: $56.56
HCRS-9 9' high Rigid Stiffener Post - Required for panel runs of 15' or more. 28
List Price: $71.34
TODAY: $64.21
HCRS-10 10' high Rigid Stiffener Post - Required for panel runs of 15' or more. 31
List Price: $79.00
TODAY: $71.10
HCWF-7M Masonry wall type Wall Fasteners - Securely fastens panel to wall. Set of 4 4
List Price: $7.84
TODAY: $7.06
HCWF-7W Wood wall type Wall Fasteners - Securely fastens panel to wall. Set of 4 4
List Price: $5.65
TODAY: $5.08
HCWF-7S Steel wall type Wall Fasteners - Securely fastens panel to wall. Set of 4 4
List Price: $5.65
TODAY: $5.08
H507S24 5' wide, 7' high Slide-N-Catch Service Window - Slides up to open. Locks closed. 21"H opening with stationary shelves. Price does not include panel. 36
List Price: $297.61
TODAY: $267.85
HISP-07S 7' high Spano-Panel - Adjusts from 2-1/2" to 12" widths between panels or panel and wall. 18
List Price: $69.27
TODAY: $62.34
HISP-08S 8' high Spano-Panel - Adjusts from 2-1/2" to 12" widths between panels or panel and wall. 21
List Price: $74.03
TODAY: $66.63
HISP-09S 9' high Spano-Panel - Adjusts from 2-1/2" to 12" widths between panels or panel and wall. 21
List Price: $83.22
TODAY: $74.90
HISP-10S 10' high Spano-Panel - Adjusts from 2-1/2" to 12" widths between panels or panel and wall. 21
List Price: $87.52
TODAY: $78.77
HCRA-7 7' high Corner Posts - One post required for every 90° corner. 7
List Price: $31.09
TODAY: $27.98
HCRA-8 8' high Corner Posts - One post required for every 90° corner. 8
List Price: $33.12
TODAY: $29.81
HCRA-9 9' high Corner Posts - One post required for every 90° corner. 8
List Price: $35.96
TODAY: $32.36
HCRA-10 10' high Corner Posts - One post required for every 90° corner. 9
List Price: $37.44
TODAY: $33.70
