Drum Handling: Lifting, Pouring, Rotating and Stacking

Lifts closed-head or open-head drums with or without tops in place. Large steel lifting ring accommodates the hooks of most overhead lifting systems. Quickly, simply, lifts 55 and 30 gallon steel drums. FOB Shipping Point.

Durable and tough Drum Clutcher safely lifts drums. Heavy gauge steel construction stands up to heavy duty service. Designed for steel drums with a top up or chime. FOB Shipping Point.

Safely and easily lift 30 or 55 gal. steel drums in the vertical position. Rachet safety locking handle provides a locked grip. FOB Shipping Point.

Drum may be transported with use of overhead lifting device (not included). All welded steel construction. Powder coat finish. Removable arms also function as a wrench. Use on drum plugs, faucets, and rim ring bolts. Fork loop is optional. FOB Shipping Point.

Unit rolls easily on 2 - 8" x 2" phenolic casters and 2 - 5" x 2" swivel polyurethane casters. Comes standard with Hydraulic Foot Pump. Available in AC, DC or Factory Air/Oil Power. Drums rotate 360°. Drums are held in place with a ratchet mechanism. FOB Shipping Point.

The multifunctional unit, model DRUM-LRT, has a hand pump that lifts drums from ground level to a raised height of 68" to bottom of drum in horizontal position. For use with 55-gallon steel, plastic and fiber drums. A hand gear mechanism provides the controlled 360° rotation of the drum. A floor lock is standard to stabilize the unit in a fixed position.

Hand crank on HHDC-305-60 lift unit and chain rotation on other efficiently tilts drum. Drum carrier rotates out of the way of the boom attachment -- stores on the lower unit. Rolls on 5" rear swivel casters and 8" front rigid wheels. 800 lb. capacity. FOB Shipping Point.

Single post design enables operators to fully view their work. Mast cradles the hydraulic cylinder to prevent damage. Convenient handles for pushing -- discourages unsafe load pulling. Attachments perform a variety of operations and mount securely on 1/2" thick, 8"W x 24"L solid steel backplate. Four power options; manual foot pump for easy and efficient lifting, 12 volt DC motor is powered by a battery (not included), 110 volt AC motor plugs into standard outlet and air power motor recommended for use in volatile areas. FOB Shipping Point. <b>A) Drum Forks</b> 22" steel forks are specially adapted to handle horizontally stacked drums. An efficient way to lift drums into and out of stacking racks. <b>B) Drum Tilter</b> For occasional one-sided drum pouring applications where no more than a 120° rotation is needed. The hand crank operated tilter rotates heavy drum with ease. <b>C) Steel Platform</b> 24" x 24" steel platform rests on model H9406 pallet forks to convert unit into a platform lift. For positioning work and moving heavy items. <b>D) Steel Forks</b> 22" steel forks move, elevate and stack pallets up to 24"D. Useful around narrow aisles and congested areas. <b>E) Drum Grip</b> spring and cam actuated jaws grip automatically as pressure against the drum forces them down. Jaws adjust manually to handle cylinders from 18-23" in dia. <b>F) Drum Rotator</b> Fully loaded 800 lb. drums can be rotated 360° in seconds with minimal effort. Universal joint on the long handle crank allows operator to stand in the optimum position for operator viewing. Gripping device features nylon belts, ratchet tighteners and rubber-coated arms for lifting various drum sizes. <b>G) Floor Lock</b>(not shown) Screw down pad secures the swivel caster end to the floor.

Pushes easily with manual steering handles and rolls on 4 x 1-1/2" swivel rear poly wheels and 3 x 1-1/4" rigid front poly wheels. Includes nylon straps and ratchet tightened to secure various sizes of drums. Lifts drums up to 800 lbs. 44" turning radius. Lifting speed of 17 FPM. Legs are 25-1/2"L and set 24" apart. FOB Shipping Point.

<P>The counterweighted ROTO-Lift offers the same drum handling capabilities as the <STRONG>ROTO-Lift Straddle Style</STRONG>, thanks to counterweighted design and slightly larger wheels for easier maneuverability. Dual counterweight holders add stability by evenly distributing 34 - 13.5 steel plates. Front wheels are 5" poly and the rear wheels are 4" swivel. Available in battery powered (battery included) or manual powered lifting and rotating. 4"L legs. FOB Shipping Point.</P>

Use one handle to control the lift height and a second to control the drum tilt angle. Turn drum 360&deg; in either direction. Faucet or drum cone in place still allows more than 180&deg; rotation. Drum holder is designed to handle 22" to 23.5" dia. steel or fiber drums. Digital scale measures to 0.1 lb. with accuracy of +/- 0.2%. Accepts Diameter Adaptors for smaller drums and holders for plastic drums are also available. Intrinsically safe, UL rated scale option available -- contact dealer for details. 800 lb. capacity. FOB Shipping Point.<BR><BR><STRONG><EM>Photo of Model H520-114 with model H5SS-IV-45-23 Drum Cone and model H7SS-23 Clamp Collar on drum.</EM></STRONG>

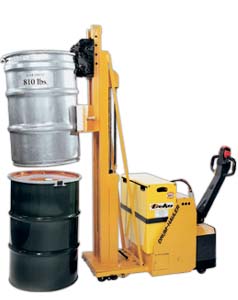

Eliminates injuries from manhandling drums. Speed controller provides infinite creep speeds. 800 lb. drum weight capacity. Gradient performance: 15% no load, 10% with 800 lb. load. Battery is DEKA Model 12D85-9, 24 Volt industrial. Tandem load rollers, stability casters, safety reversing switch in handle, key on/off, horn and battery indicator. EG3 single automatic drum clamping mechanism. Finished in powder coat safety orange. Base frame size: 27.25"W. x 46.5"L. x 57.5" to 77.25"H. FOB Shipping Point. Optional Features: Double Clamping Mechanism in lieu of single. "EE" Rating (FM approved) 24 Volt Auto Stop/Start battery charger (110 volt). Increased drum weight capacity to 1500 lbs. Scale option w/Nema 4X stainless steel indicator.

Standard Features Include:&nbsp; AC drive motor with regenerative braking, electronic speed controller, tandem load wheels, stability casters, Deka 12D-85-9 industrial 24-volt battery, safety reversing switch, key on/off, horn, battery discharge indicator/ hour-meter, powder coat finish.&nbsp; FOB Shipping Point. <BR><BR><STRONG>Option for Non-Rotating Drum-Hauler Models<BR></STRONG> <UL> <LI>Double Clamping Mechanism (EG4) in lieu of Single Clamping Mechanism (EG3). Add <STRONG>$550.00</STRONG> </LI></UL> <P></P> <P dir=ltr><BR><STRONG>Options Available for All Models:</STRONG>&nbsp;<BR><BR> <UL> <LI>FDA approved epoxy powder coating with stainless steel hardware.&nbsp;&nbsp; Add <STRONG>$1200.00</STRONG> <LI>Battery Charger (30 amp / 24-volt output) 110 volt input.&nbsp;&nbsp; Add <STRONG>$570.00 <LI></STRONG>"EE" Rating - Factory Mutual Approved.&nbsp;&nbsp; Add <STRONG>$2450.00</STRONG> <LI>SCALE:&nbsp;Non-intrinsically Safe Scale with Model 8000XL Indicator. &nbsp; Add <STRONG>$2550.00 <LI></STRONG>SCALE:&nbsp;Intrinsically Safe Scale with Model 8000IS Indicator -&nbsp;for "EX" rated areas<STRONG>.</STRONG>&nbsp;&nbsp; Add<STRONG> $3750.00 </STRONG> <LI>SIDE SHIFTER with 8" of travel: 4" left &amp; 4" right of center (N/A on two-stage masts). &nbsp; Add <STRONG>$2425.00</STRONG> <LI>Anti-Drift Motor Brake (Recommended for FCR Clamp when suspending load for long periods).&nbsp;&nbsp; Add <STRONG>$1225.00</STRONG></LI></UL>
